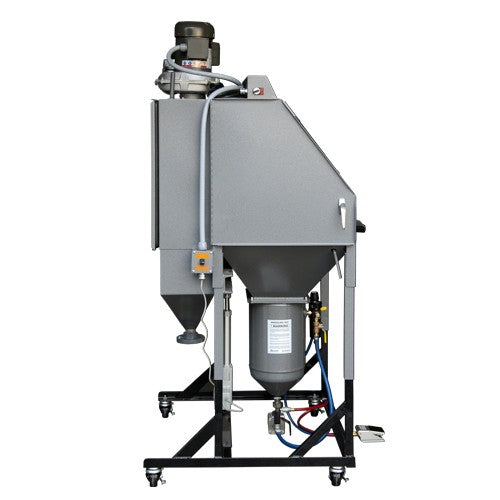

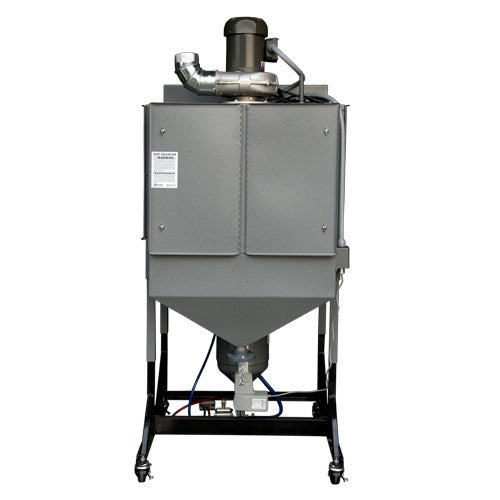

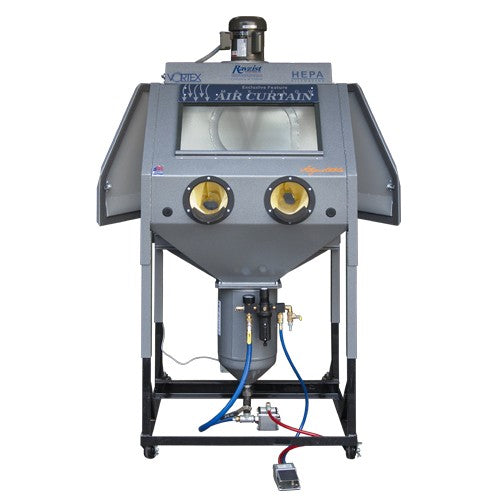

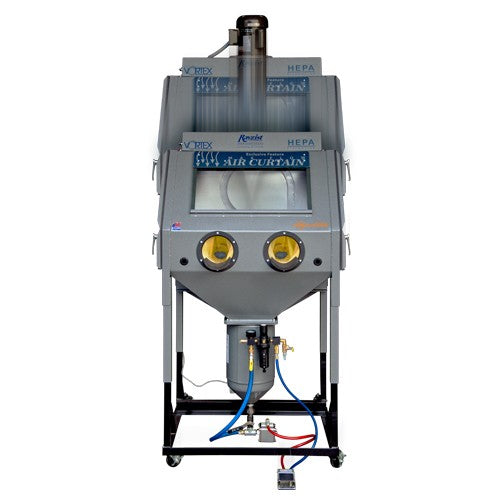

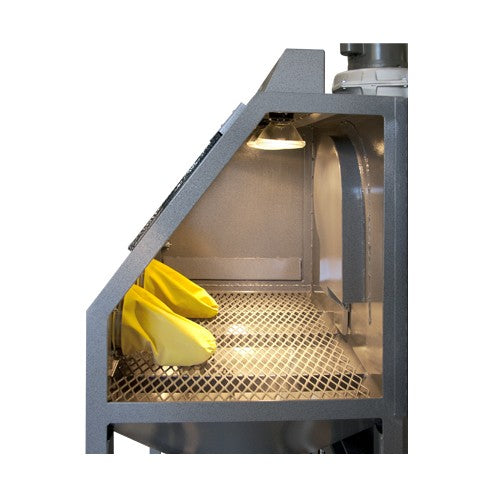

Auto Recycling Sandblasting System
SKU: PB2034VXA
The PB2034VXA Sandblasting system is our flagship system. It is a high-quality commercial pressure pot sandblasting system that performs at the top of its class.
The ergonomic design with electronically adjustable height makes it comfortable to use for any sized person and the unique vortex filtration system keeps your view clear while you work productively with the quality made pressure pot system.
Get the best system on the market today; get the PB2034VXA.
Shipping throughout Australasia on a pallet. Dropdown Tailgate delivery can be arranged if no forklift is available.
Weights and Measures
- Dimensions: 99cmW x 84cmD x 200cmH
- Inside Work Space: 86cmW x 56cmD x 61cmH
- Door Opening: 51cmW x 54cmH
- Power: 220 volt, 50 Hz 10amp
- Compressor Recommended: 17cfm
- Interior Air Suction: 740cfm
- Shipping Weight: 260 kilos
- Shipping Dimension: Pallet 1100x1100x2000mm
Construction
- Cabinet: 14 & 16 Gauge Seamless
- Motor: ¼ Hp, 3,450 Rpm, Radial Blades
- Viewing Window: 60cmW x 30cmH
- Pressure Pot: 70lb
- Pressure Lines: 1/2" & 1/4" outer diameter airline. 300 psi rated.
- Blasting Hose: Heavy duty braided 1/2" outer diameter. 150 psi rated.
- Lighting: Dual 90 watt recessed halogen lamps, totalling 2740 lumens.
Videos
Features
Ergonomics

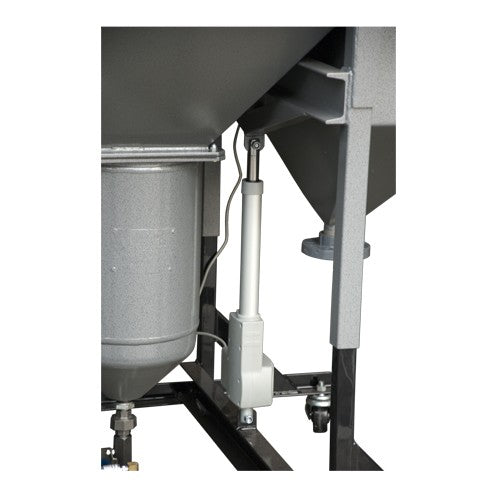

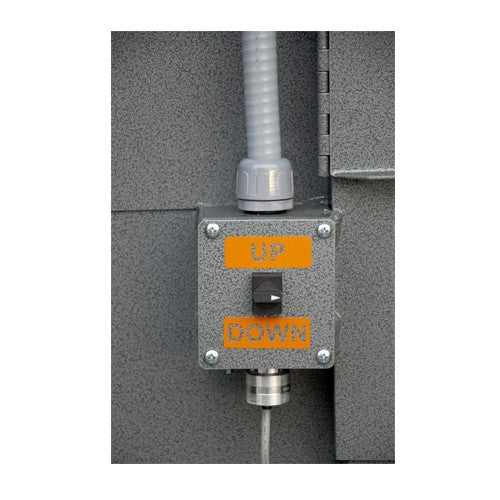

- Electronic Height Adjustable
- Padded Arm Rests
- Foot Pedal Operation Reduces Fatigue
- Dual Doors for efficient workflow
- Quite Operation
Performance
- Pressure Pot System
- Carbide Nozzle – 3/32” standard
- Auto Recycling System
- Foot Pedal Operation
- High Quality Regulator
Clean Air System
- Clear View Air Curtain
- Vortex Dust Management System
- HEPA Air Filtration with Teflon Lined Bags
- Filter Shaker to keep bags in optimal performance
- Clean waste disposal system
Assembly
- No tools required. System is packaged completely assembled
- Requires Australian power plug (not included)
- Requires 2 x Par 38 Socket. 90-100wt or equivalent LED lamp. (not included)
Warranty
- Cabinet Construction: Lifetime Warranty.
- Air Exchange Motor: 1 year.
- Non-Wear Parts: 90 days.
Related Products
MANUAL
Sandcarvers Manual
$137
70
AO-150
Aluminium Oxide 150 Grit 25kg
$139
75
BGL

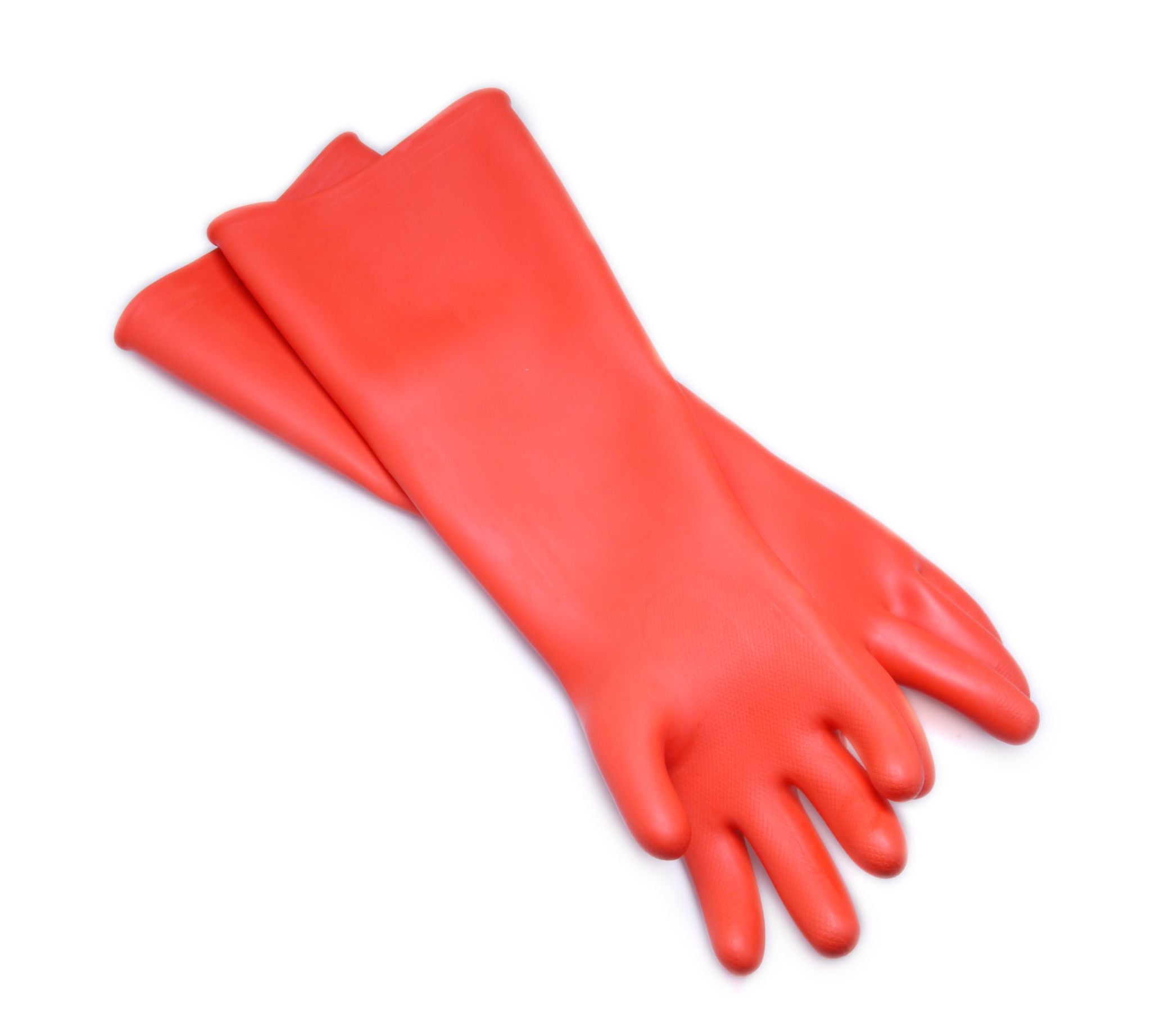

Heavy Duty Rubber Sandblasting Gloves
$103
CN-3/32

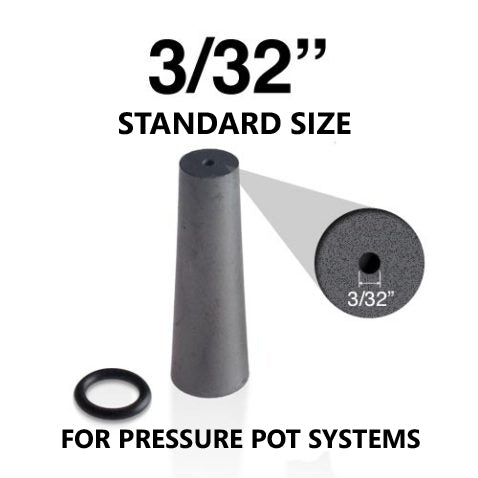

Carbide Nozzle 3/32" (Std Size)
$118
15

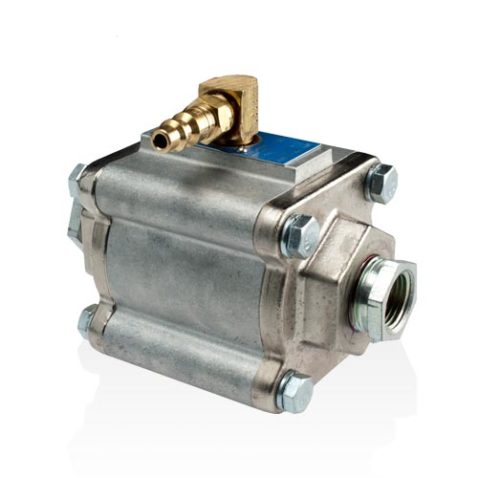

SFVHD
Foot Switch Valve for Rayzist Systems
$747
85
SFVHDRK

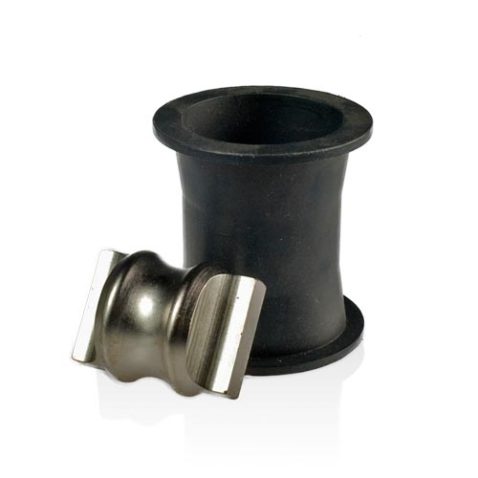

Foot Switch Valve Kit / Tube Sleeve
$191
10

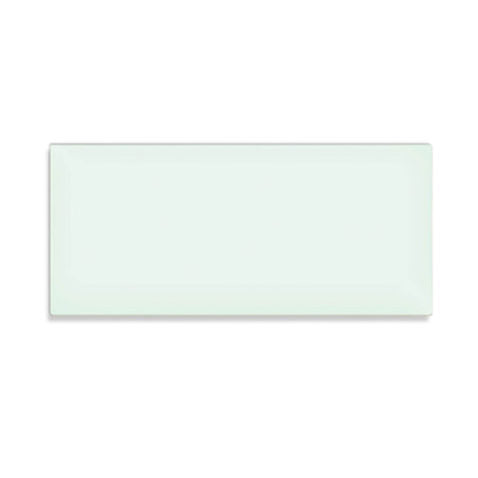

RG PB2034
Replacement Window PB2034VXA
$62
50

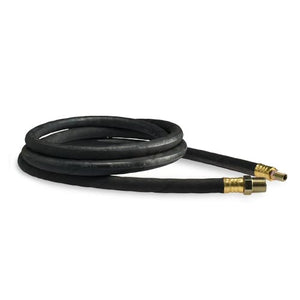

BHHD
Heavy Duty Blasting Hose with Fittings
$387
30

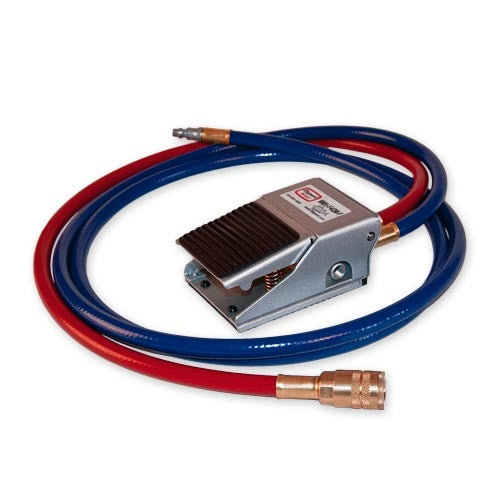

FP-SH
Foot Pedal with Short Hose
$340
40

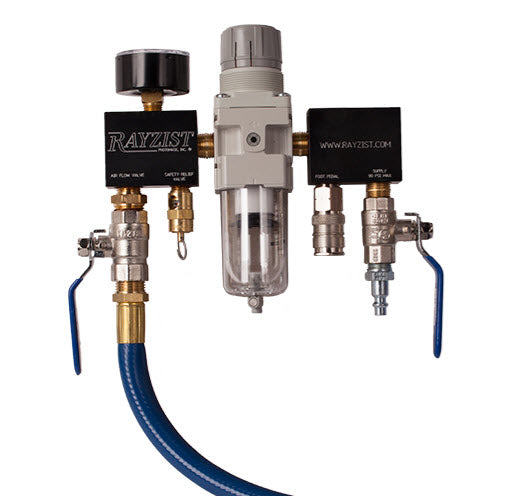

REGAW
Air Pressure Regulator
$639
25
PPSRM

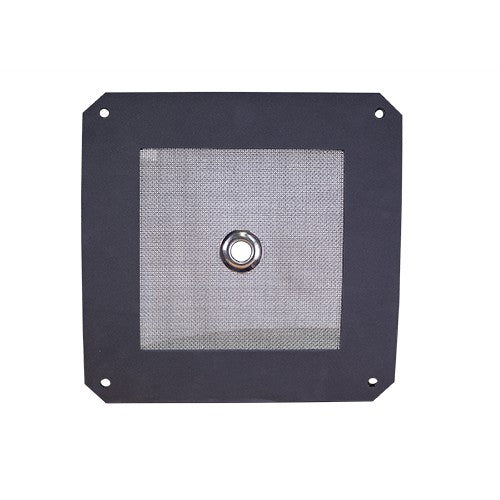

Pressure Pot Screen
$149
55

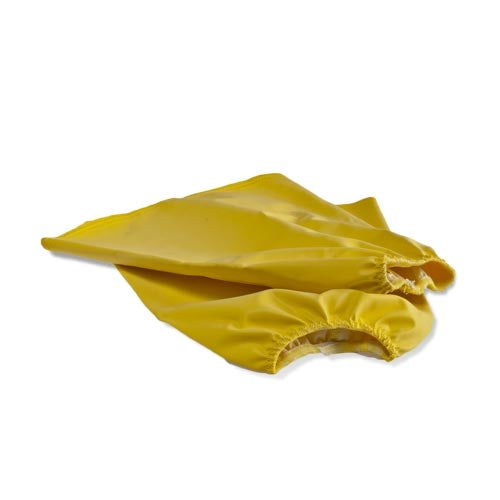

BS
